 首页 > 产品中心 > > 美国ACT产品系列 > ACT TEST PANEL - PREMIUM GRADE 优等品面板
  产品中心

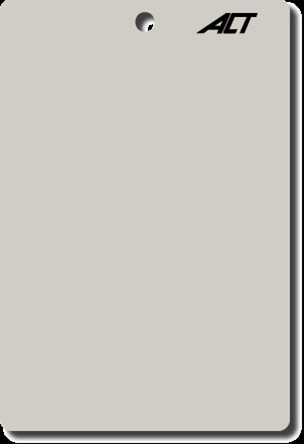

ACT TEST PANEL - PREMIUM GRADE 优等品面板

点击放大
产品型号:
TEST PANEL - PREMIUM
产品报价:
产品特点:
Features产品特性:
Fully Pedigreed and Certified 经过认证
• Consistent Material Over Time 材料*性
• Highly Customiable 可定制
• Batch Traceable 批次可溯性
• Testing Quality经过测试
  TEST PANEL - PREMIUMACT TEST PANEL - PREMIUM GRADE 优等品面板的详细资料:

ACT TEST PANEL - PREMIUM GRADE 优等品面板



Features产品特性:

Fully Pedigreed and Certified 经过认证

 Consistent Material Over Time 材料*性

 Highly Customiable 可定制

 Batch Traceable 批次可溯性

 Testing Quality经过测试



Uses用途:

Coatings R&D 涂料研发

 Materials R&D 材料研发

 Coating Qualifications 涂料验证

 Plant Audits 工厂稽核

 Material Compatibility 材料性能





Aluminum 2024T3

Aluminum alloyed with copper and a tensile strength of 3. 铜铝合金,抗拉强度是3

Aluminum3003H14

Aluminum alloyed with manganese and a hardness of 14. 锰铝合金,硬度是14

Aluminum5052H32

Aluminum alloyed with magnesium and a hardness of 32. 镁铝合金,硬度是32

Aluminum6016T4

Aluminum alloyed with magnesium and silicon and a tensile strength of 4. 镁铝硅合金,抗拉强度是4

Aluminum6022T43

Aluminum alloyed with magnesium and silicon and a tensile strength of 43. 镁铝硅合金,抗拉强度是43

Aluminum6061T6

Aluminum alloyed with magnesium and silicon and a tensile strength of 6. 镁铝硅合金,抗拉强度是6

Aluminum6111T43

Aluminum alloyed with magnesium and silicon and a tensile strength of 43. 镁铝硅合金,抗拉强度是43

Aluminum6451T4

Aluminum alloyed with magnesium and silicon and a tensile strength of 4. 镁铝硅合金,抗拉强度是4

Aluminum7075T6

Aluminum alloyed with inc and a tensile strength of 6. 锌铝合金,抗拉强度是6

AluminumX610

Specialied aluminum alloy used in automotive applications. 其他特制

AluminumX611

Specialied aluminum alloy used in automotive applications. 其他特制



喷砂处理



Item Number

Sie

Panels/Pkg

Item Number

Sie

Panels/Pkg

56655

3x5x071

10

58999

3x5x125

5

58980

3x6x071

10

59000

3x6x125

5

56223

4x6x071

10

59001

3x9x125

5

56074

4x8x071

10

59002

4x6x125

5

56274

4x12x071

10

59003

4x8x125

5

58996

2x2x125

5

59004

4x10x125

5

58997

2x4x125

5

59005

4x12x125

5

58998

2x5x125

5

59006

6x12x125

5





Plastic— Special Order塑料特殊定单



Plastic panels are available in a variety of substrates with different uses and properties. The typical automotive plastics offered are listed to the right.不同基板针对不同的用途和性能。汽车方面常用的如下:

ABS

Acrylonitrile Butadiene Styrene

Nylon

Nylon (filled or unfilled)

Polycarbonate

Polycarbonate

PPO

Polyphenylene Oxide

RIM

Reaction Injection Mold

RRIM

Reinforce Reaction Injection Mold

SMC

Sheet Molded Compound

TPE

Thermoplastic Elastomer

TPO

Thermoplastic Olefin

TPP

Thermoplastic Polyesters

TPU

Thermoplastic Urethane

TSU

Thermoset Urethane



Special Shapes 非标产品



The “ACT Test Panel” can be manufactured in more shapes than a simple square or rectangle. Over the years, doens of “Special Shapes” have been developed to meet the highly specific needs of our customers. Below you will find a brief description and picture of each of the common special shapes sold today.

* Special Shapes with an asterisk denote products which can be constructed with customer supplied metal substrates, adhesives, and/or sealers.

美国ACT Test Panel公司除了生产正方形和长方形也能生产各种非标的产品。具体如下:

Abrasion 磨损



These panels are used for accelerated wear action testing to measure abrasion resistance of coatings. They are designed to fit the Taber® Abrasers. The standard ACT smooth edges and rounded corners provide improved handling safety to this test method.

Our standard abrasion panels are made from cold rolled steel although other types of metal are available. These panels are available untreated, phosphated, electrocoated, primed, or topcoated.

这些面板用来测试涂层的耐磨性。

Box Interior Cavity * 部件内部隐蔽处



This configuration is designed to simulate body cavities found in doors, deck lids, tailgates, and other box type assemblies. These panels are used to test various paint system applications such as film overbuild effect on exterior surfaces and corrosion resistance along interior cavities and seams. Ends may be opened or closed.

These panels can be constructed of any metal combination, single or bimetallic. Available untreated, phosphated, electrocoated, primed, or topcoated.

可以定制门、盖板、后档板和其他箱体内部的面板,这些面板来测试涂料在外表面、内腔及焊缝处的耐腐蚀性。

Coach Joint * 结合部



These test panels simulate support joints where exposed surfaces of differing substrates form potential corrosion sites. Coach Joints are typically constructed from two panels of different metals joined together at a 90 degree angle along the side with five spot welds.

Bimetallic assemblies are available untreated, phosphated, electrocoated, primed, or topcoated. A typical configuration is cold-rolled steel and galvanied steel such as G60, however, any combination may be specified.

可以定制支撑结合部的面板



Domes 圆形



These panels are used for paint demonstrations to show color effect on curved surfaces.

We offer Dome Panels in 6", 12" and 16". These panels are available untreated, phosphated, electrocoated, primed, or topcoated. 这些面板用来测试圆形曲面上的涂料效果。我们提供6英寸、12英寸、16英寸的圆形曲面。



Drip Rail * 挡水条面板



This configuration simulates the roof joint where the upper body is attached to the roof forming the gutter or drip rail. This area requires a special sealing operation to prevent water and sound intrusion. These panels are used to evaluate sealers before and/or after treatment.

Drip Rail Panels are constructed using 3 panels joined at the base of a 1/2" deep gutter. The panels are joined with spot welds. The configuration has an overall sie of 4" x 24". Any metal combination, single or bimetallic, can be specified for this configuration.



Edge Corrosion Blades 腐蚀片边缘





This panel is used to evaluate edge corrosion protection for various coating systems, such as ecoat. Edge Corrosion Blades are constructed of steel, 3/4" x 4" - available as untreated or inc phosphated.

这个面板用来检查腐蚀片边缘的涂料性能。



Hemflange Seam Joint* 折边法兰接缝处



These Panels are designed to test difficult corrosion sites that occur along seams found in doors and deck lids. These Panels are constructed from two 4" panels joined with a 3/4" crimp seam joint and two spot welds. The top panel is bent to a 40 degree angle 3/4" from the seamed edge. Reverse Hemflange Panels are also available.

Typical Bimetallic Assemblies are made from cold rolled steel and hot dip or electro galvanied steel. Other types of metal are available. These panels are available untreated, phosphated, electrocoated, primed, or topcoated.

这个面板用来测试门和盖板接缝处等难以腐蚀处的涂层性能。

Lap Joint - End to End * 接缝处 尾相连





Using two different steels, End to End Lap Joints are constructed from two panels overlapped end to end and joined with three spot welds.

Lap Joint Panels are available untreated, phosphated, electrocoated, primed, or topcoated. A typical configuration is cold-rolled steel and galvanied steel such as G60, however, any combination may be specified.

使用两种不同的钢材,用两块面板尾相连并用3个点焊接。



Lap Joint - Side to Side *接缝处 侧面和侧面相连



Using two different steels, Side to Side Lap Joints are constructed with two panels overlapped side to side and joined with 5 spot welds.

Lap Joint Panels are available untreated, phosphated, electrocoated, primed, or topcoated. A typical configuration is cold-rolled steel and galvanied steel such as G60, however, any combination may be specified.

使用两种不同的钢材,用两块面板侧面连接侧面并用5个点焊接。



Leading Edge Chipping Panel 前边缘缺口处面板



These test panels simulate the leading edge of autos, such as the hood. The angles represent the aerodynamic angle typical of today's designs. This panel is used to evaluate chipping resistance of coatings on a leading edge. A corrugated panel which fits the gravelometer window is attached to one end of a 4"x12" base panel. The corrugated panel has peaks 0.8" crest-to-crest and 0.4" high. Angles are 135 degrees to the base panel with a 270 degree leading edge.



Available untreated, phosphated, electrocoated, primed, or topcoated. These panels are typically made from cold rolled steel, however, other types of metal can be used upon request.

这个面板用来看汽车前边缘,如发动机罩处的涂料的性能。



Marciniak Cup马齐尼亚克杯



The Marciniak Cup is designed to simulate a formed section of a car body, particularly in Gravelometer tests. The form of this panel is stiffer than a flat steel test panel and does not deform causing more energy to be absorbed by the coating which results in a more severe and more realistic chipping test. This panel can also be used to evaluate the adhesion of metallic coatings, such as galvanied or galvanneal, to the steel substrate.

These test panels are available untreated, phosphated, electrocoated, primed, or topcoated.

这个面板用来看汽车车身抗击沙砾冲击试验。评估金属涂层的黏附性能。



Sag Bend 凹陷折弯处



This panel has body styling lines combined with trim holes to simulate production applications. Its special configuration is used to evaluate sag and run down properties of paint. Each panel has a contoured styling bend 2" wide by 1.5" high with holes 0.25" in diameter.

Panel sies include 12”x9”, 12”x12”, and 12”x18” and are typically constructed of cold rolled steel. Other types of metal are available. These panels are available untreated, phosphated, electrocoated, primed, or topcoated.

这个面板用来评估凹陷折弯处涂料性能。



Sag Flat凹陷平坦处



This panel with holes simulates flat body surfaces where trim moldings, handles, and lockcylinders are mounted. Its special configuration is used to evaluate sagging and run down properties of paint.

Panel sies include 4"x18", 12"x12", 12"x18", and 12"x24" and are typically constructed of cold rolled steel. Holes are 0.25" in diameter on 1" centers. Other types of metal are available. These panels are available untreated, phosphated, electrocoated, primed, or topcoated.

这个用来评估车身表面的涂料性能。



Snap Off— Adhesive 折断 粘着剂



Individual test strips are manufactured such that the test surface on one side and at one end has no burred edges to interfere with the adhesive bond during testing. The test surface itself remains undisturbed since grinding or de-burring is not part of the process.

These adhesive panels are made from cold rolled steel and come in 1”x4” or 2”x3” snap off segments. Other types of metal are available. These panels are available untreated, phosphated, electrocoated, primed, or topcoated.



Snap Off – Weathering折断 老化



Each panel is blanked to a configuration that provides four individual test coupons which can be readily snapped apart for testing as needed. These panels are designed to fit into fluorescent light exposure apparatus and controlled condensation cabinets.

Weathering Panels are constructed of cold rolled steel panels pre-cut into four 2"x3" identically processed test coupons. Other types of metal are available. These panels are available untreated, phosphated, electrocoated, primed, or topcoated.



Space Frame Enclosed Box * 立体框架密闭箱



This is an enclosed assembly designed to simulate the space frame construction of an auto. It is used to evaluate coatings for their ability to provide corrosion protection in this type of configuration and environment. This special shape is also useful in evaluating structural foam performance.

The Space Frame Box Section has an overall dimension of 9"x14.5" x3". It is constructed from a 9"x14.5" base panel , two 6"x14.5" box panels, and two 6"x3" end panels. Each end panel has a 1" diameter hole. These can be produced in any metal combination, and are available untreated, phospated, electrocoated, primed, or topcoated.



用来评估立体框架密闭箱体的防腐蚀能力。用来评估泡沫结构性能非常有用。



ACT Test Panel Coating Options涂料选项



There are many potential steps involved in the process of manufacturing a full paint system “ACT Test Panel”. At the end of each step along the way, a panel can be delivered to you, the customer, or down the line to the next step in the process within our facility.



Cut Only 一次切割

Cut only panels are just what the name implies - cut only. These panels will contain the rust preventative oils used in the manufacture of the substrate from the mill. (Coil coated materials are the are an exception to this rule)



Cleaned 清洁面板



Cleaned panels are subjected to a cleaning and drying process according to ASTM D609 C prior to packaging. This process intentionally excludes the application of additional corrosion inhibitors, which make these panels ideal for sensitive evaluations such as mill oils, rust preventatives, and pretreatments. The removal of rust preventative oils

根据ASTM D609C,这个清洁面板在包装前只经过清洁干燥过程。



Pretreament - Phosphate Coating 预处理磷化



ACT premium brand test panels are manufactured from specially selected, high quality metal substrates to ensure the required consistency and reliability for product development programs. Phosphate can be applied by a spray or immersion process as specified.



inc Phosphate磷酸锌



Various inc phosphate options are available including a chromic sealer rinse, non-chromic sealer rinse, and a final fresh de-ionied water rinse prior to forced drying. Individual stages of the phosphate process can be varied by con-tracting for prototyping services.



Iron Phosphate磷酸铁



Standard iron phosphate panels can be processed with a chromic sealer rinse, non-chromic sealer rinse, and a final fresh de-ionied water rinse prior to forced drying. However, they can be ordered without the de-ionied water rinse.





Commonly Available Phosphate Treatments 常用的磷酸盐

inc Phosphate Spray

Bonderite® 37, Bonderite® 952, Bonderite® 3410, and Chemfos® 710

inc Phosphate Immersion

Bonderite® 958, Bonderite® 3080, Bonderite® 3020, Bonderite® CD10, and Chemfos® 700

Iron Phosphate Spray

Bonderite® 1000, Bonderite® 1030, Bonderite® 1070



Commonly Available Sealers

Chrome Sealers

Parcolene® 60 and Chemseal® 18

Non-Chrome Sealers

Parcolene® 90, Parcolene® 91, Parcolene® 99x, and Chemseal® 59



Pretreament - Conversion Coating 预处理 化学涂层



Commonly Available Conversion Coatings 常用的化学涂层

Aluminum Spray Treatments

Alodine® 407, Alodine® 600, Alodine® 1500,

Alodine® 5200



Pre-Treat Thin Film (Nano Technologies)



ircobond® Duratec® 100



Electrocoat 电镀



Panels may also be ordered with a cathodic electro-deposition (electrocoat, ecoat, elpo, or electrophoretic) paint system. These panels are automotive approved and offer several advantages over in-house primed panels. Since electrocoat prime painted panels from ACT follow the complete automotive finishing cycle (substrate preparation, phosphate coating, and prime painting) in a single controlled facility, variability due to handling, shipping, and exposure is eliminated.





Commonly Available Electro Deposition Paint Systems 常用的电镀材料

BASF

U32AD500

U32AD500F

U32AD800

U32AD520

Axalta

Cormax® VI KAI

Cormax® NA

Cormax® 6

Cormax® 6 EP

EC3000AM

ES21

ES27

PPG

ED6060C

ED6060C

ED6100C

ED6280

ED6450 HE

ED6550 G KAI

ED6650

ED6750 CA

ED6750 S

Powercron® 590

Powercron® 6000CX

Powercron® 8000



Spray Painting 喷漆



ACT’s spray painting system incorporates automated digitally controlled Spraymation machines to assure the accuracy, consistency, and repeatability of the spray operation. Capabilities include the application of primers, enamels, two component materials, waterborne coatings, basecoat / clearcoat systems, and powder applications.

ACT Test Panels works closely with the major OEM and aftermarket paint manufacturers such as BASF, Axalta, PPG, Sherwin Williams, Ako Nobel, Rohm Haas, and Valspar to coordinate supply of specific paint systems for your panel needs.

ACT采用的是自动数字Spraymation来保证准确性、*性和可重复性。



Powder Painting 粉末喷涂



ACT’s custom horiontal powder coating line was specifically designed for the production of test panels. Through the use of this automated system, ACT is able to produce extremely consistent panels with a wide range of film builds and finishes.

ACT Test Panels works closely with the major OEM and aftermarket paint manufacturers to coordinate supply of specific paint systems for your panel needs.

ACT采用定制的水平粉末喷涂生产线。





ACT Test Panels Premium Grade 优等品面板 ACT TRU Panels Utility Grade通用品面板 美国ACT克莱斯勒桔皮板  美国ACT福特桔皮板 美国ACT GM桔皮板  美国ACT PCI标准 粉末平滑性  美国ACT 福特汽车公司色卡  美国ACT GM腐蚀片 质量损失片  美国ACT GM腐蚀片支架 质量损失片支架  美国ACT Grit Trough Solution Mix 沙砾混合粉尘  美国ACT Ford Cross Hatch Panel 福特划格板  美国ACT Scribe Tool 划格刀盐雾箱腐蚀测试片、盐雾箱标准测试片、盐雾箱校准片、盐雾试验校准板、盐雾箱校准板、GMW14872腐蚀片、GMW14872测试片、GMW1487校准板、GMW1487校准片、GMW14872标准腐蚀片、ISO9227腐蚀片、ISO9227测试片、ISO9227校准板、ISO9227校准片、ISO9227标准腐蚀片、GM9540P腐蚀片、GM9540P测试片、GM9540P校准板、GM9540P校准片、GM9540P标准腐蚀片、SAEJ2334腐蚀片、SAEJ2334测试片、SAEJ2334校准板、SAEJ2334校准片、SAEJ2334标准腐蚀片、ASTM B368腐蚀片、ASTM B368测试片、ASTM B368校准板、ASTM B368校准片、ASTM B368标准腐蚀片硬质合金手持式划线器  标准测试板支架,PTI粉尘、JIS粉尘、DMT粉尘、ISO粉尘 ACT测试面板 ACT经济面板
